Trade Aluminium Doors

ALuminium Doors.

TPL Trade Limited supply quality Trade Aluminium Doors to compliment the Window Systems. Doors are offered in two profiles for the 58mm suite Equal Leg or Long Leg, for Direct Fix system the profile is 70mm. As standard all profiles are available in Satin Anodised, Polyester Powder Coated White, Black or Anthracite Grey. Other Single or Dual RAL colours are available on application. All extrusions have a Polyamide Thermal Break giving a Superior Thermal Performance which is Document L compliant.

We also offer fully fabricated Commercial Aluminium, suitable for Entrances, Shop-fronts and Showrooms. Curtain Walling can also be supplied for use in larger glazed areas. Any RAL colour can be accommodated to order. Many design options and specifications are available from the list below.

PATIO / FRENCH DOORS

Patio Doors are offered in 2, 3 or 4 panels sliding in- line. They slide on tandom caterpillar rollers on a stainless steel track. Glazing can be 24/28mm either with the section wrapping around the unit or beaded. Multi-Point locks, anti-jemmy blocks and double brush pile draught seals are standard.

French Doors are available with a concealed Flush Bolt to the slave leaf, Lever / Lever Handles to master leaf, Multi-Point Locking and Butt Hinges.

BI-FOLDING DOORS

Bi-Folding doors are available in 2 -7 leafs wide. Fabricated similarly to a residential door but slide from the top by quality sliding door gearing and guides to the base of door leafs, leafs joined together with stainless steel butt hinges, double draught sealed. Secure locking to master leaf and intermediate leafs. Commercial Bi-Folding Doors also available.

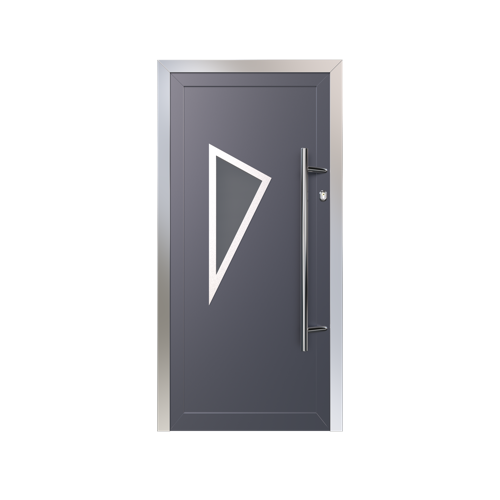

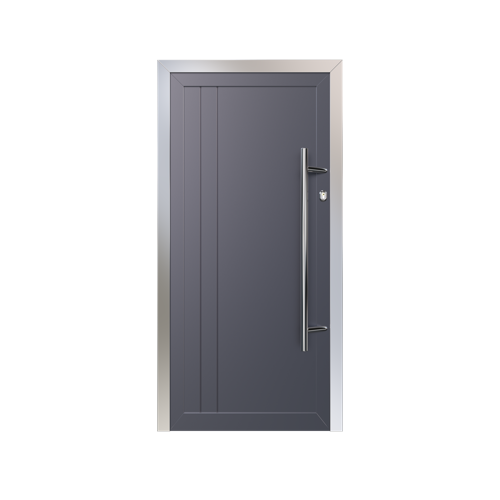

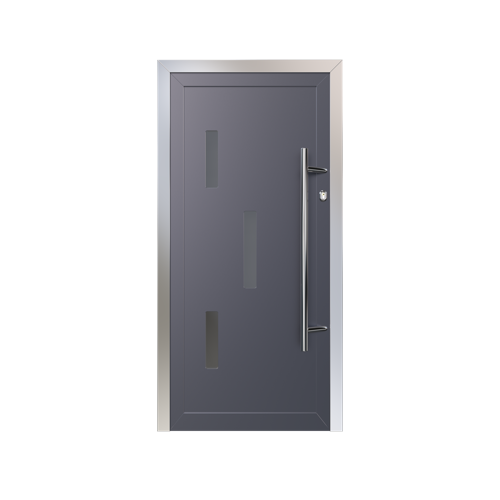

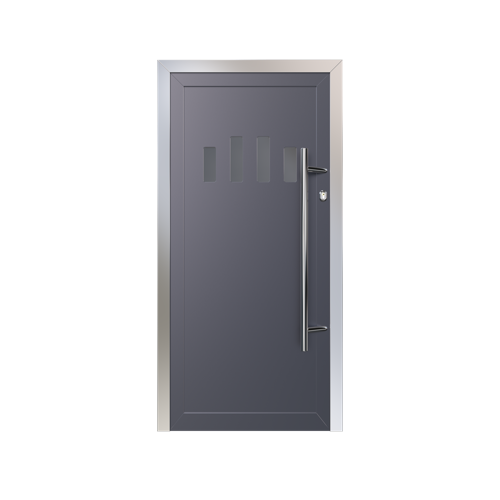

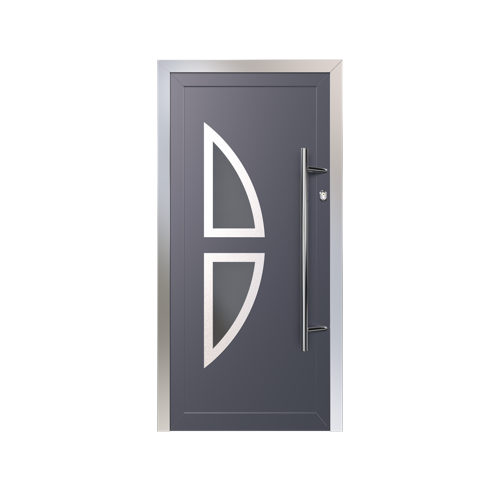

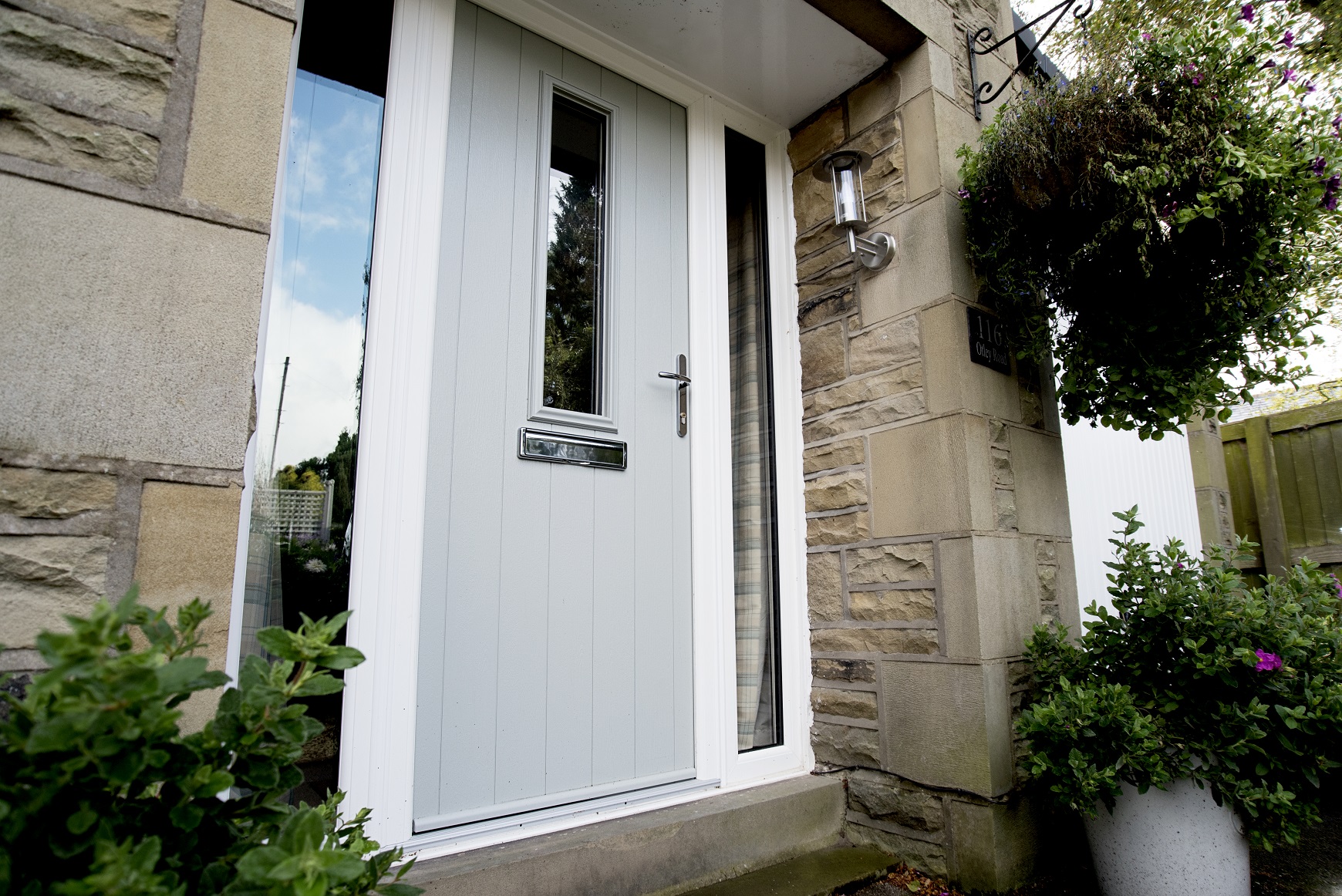

RESIDENTIAL DOORS

• Single or Dual Colour
• Wood-Grain Paint Finish (subject to quantity)
• Internal or Externally Glazed
• Low Aluminium Threshold
• Multi-Point Locks
• 155mm or 190mm Cills

COMMERCIAL ENTRANCE DOORS

Commercial Entrances are supplied for use in heavy useage areas such as shops, schools etc. Each Entrance is tailor made to suit your requirement and available in any RAL colour together with any of the following options.

• Single or Double Glazed
• Concealed Overhead or Face Mounted Closer
• Pad Handles
• Anti-Finger Trap Jambs
• Hook Lock and Euro-Cylinder
• Mid-Rail
• Low Aluminium Threshold
• Fire Exit Panic Release
• Automatic Release
